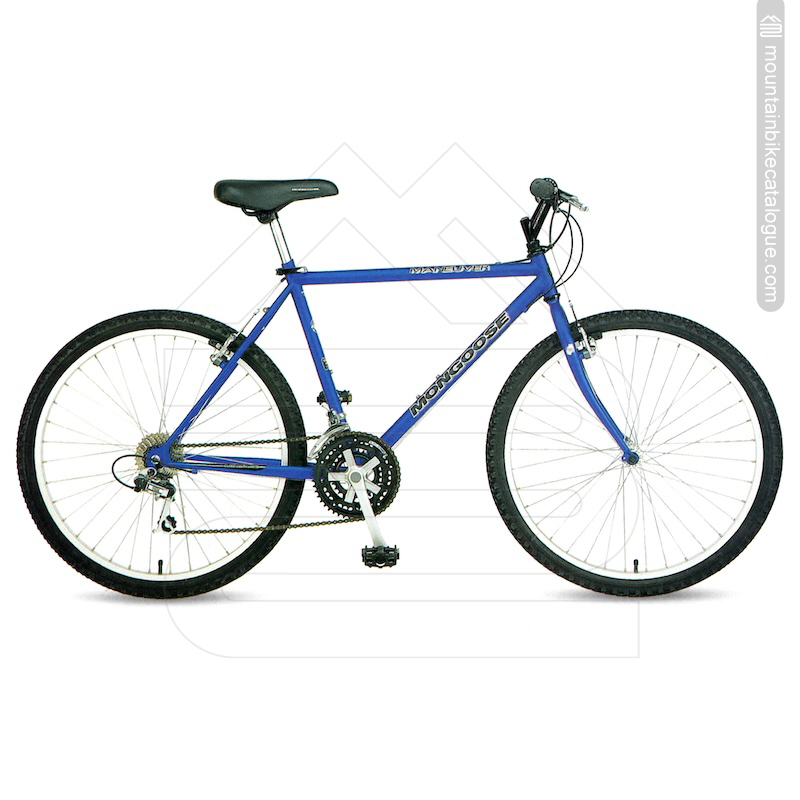

The 1997 Maneuver has a Mongoose new bulge-butted oversize Cr-Mo seat tube frame. Shimano 21-speed drivetrain with Grip Shift dual indexed shifters and Shimano alloy brakes. Quick release front wheel and seat pin. Comfortable upright seating position with wide cushy saddle. Also available in ladies frame sizes.
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Brake Set
Derailleurs
Cassette
Chainrings
Cranks
Seat
Stem
Tyres
CR-MO ST Frame
Mongoose HI-TEN
Mongoose Flat
Weinmann 4019
Mongoose Al 36H
Mongoose Resin
Shimano Alloy
Shimano TY22
S HG 11-28T
SR XR 38/38/28
SR XR 00 Index
MNGS Comfort
MNGS Comfort
Mongoose BW
Headset
Mongoose
Seatpost Size
-
Frame Size
14/16/18/20/22/24
Original Colours
| Size | ST | TT | WB | FR | CS | HT | BB | HA | SA | SO |
| 14" | 355 | 515 | 1042 | 45 | 445 | 85 | 38 | 69.5˚ | 72.5˚ | 27" |
| 16" | 406 | 535 | 1055 | 45 | 445 | 85 | 38 | 69.5˚ | 72.5˚ | 28.5" |
| 18 | 457 | 560 | 1063 | 45 | 445 | 95 | 35 | 70˚ | 72˚ | 30" |
| 20 | 508 | 570 | 1071 | 45 | 445 | 135 | 35 | 70˚ | 72˚ | 31" |
| 22 | 559 | 580 | 1076 | 45 | 445 | 180 | 35 | 70.5˚ | 72˚ | 33" |
| 24 | 610 | 590 | 1087 | 45 | 445 | 230 | 35 | 70.5˚ | 72˚ | 34.7" |
Mongoose frames are measured "Center-To-Center" (For example: the seat tube measurement is taken from the center of the bottom bracket spindle to the center of the top tube where it intersects the seat tube). The Amplifier and C(a)2 frames are measured "center-to-true-horizontal" (where the top tube would intersect the seat tube if the top tube were parallel to the ground). All dimensions are in millimetres unless otherwise stated.
