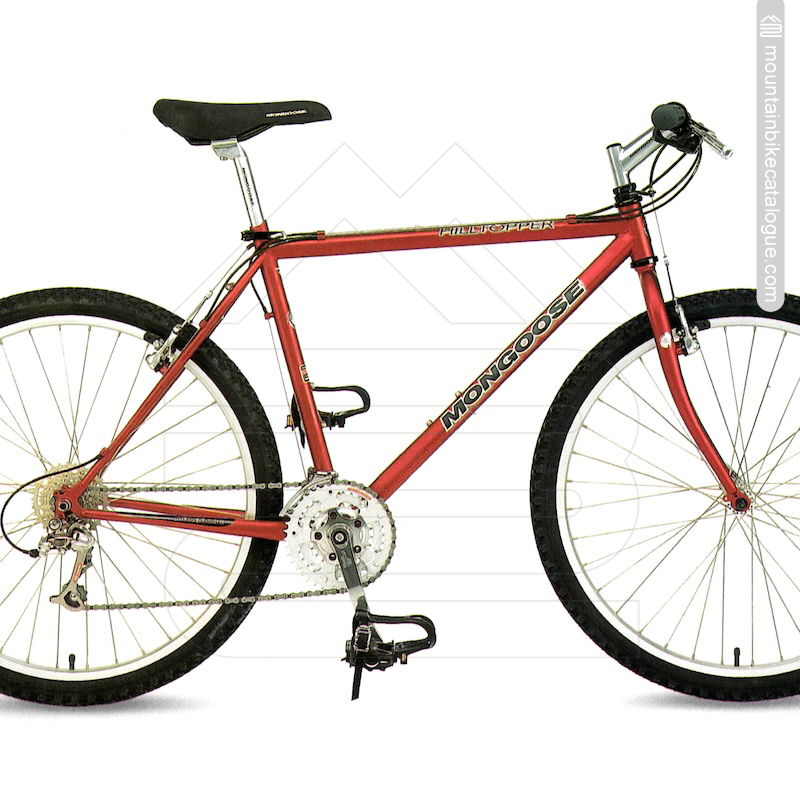

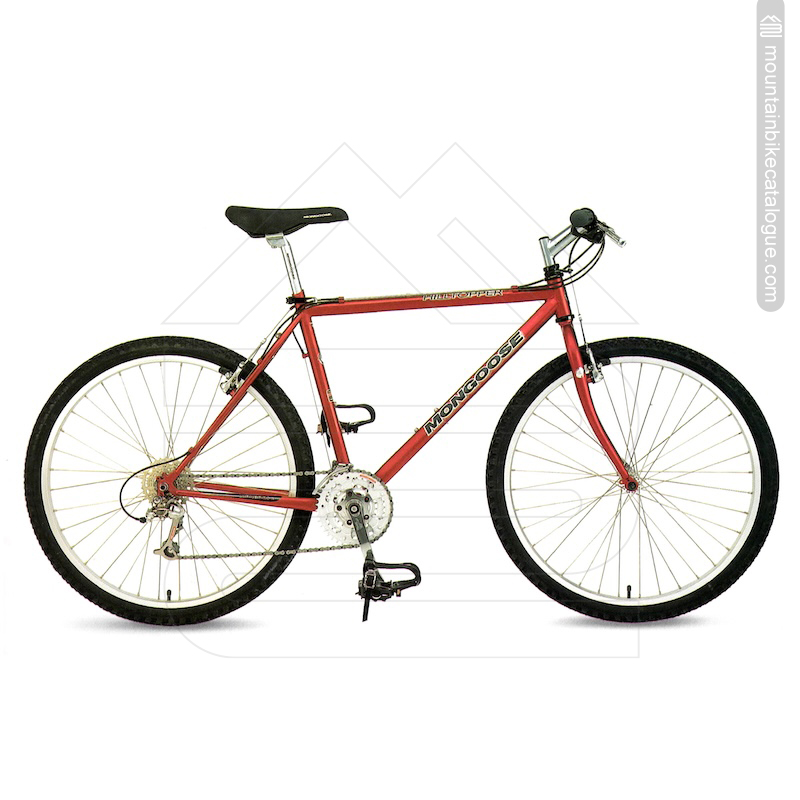

The 1997 Hilltopper has a Mongoose new oversize patented Cfa 100% Cr-Mo frame with Cr-Mo fork. Smooth shifting Shimano 21-speed Alivio/STX drivetrain. Shimano STX Rapid Fire SL shifters and Shimano Acera-X brakes. Toe clips and straps.
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Brake Set
Derailleurs
Cassette
Chainrings
Cranks
Seat
Stem
Tyres
100% Cr-Mo Cfa SL
Mongoose Cr-Mo
Mongoose Alloy
Weinmann 4019
Mongoose 36H
Mongoose Alloy
Acera X Canti
Sh Alivio
S HG 11-28T
STX 44/32/22
Shim STX
MG Softlite
Pro Series Al
Mongoose MTB
Headset
Ahead
Seatpost Size
-
Frame Size
13/15/16.5/18/19.5/21.5
Original Colours
| Size | ST | TT | WB | FR | CS | HT | BB | HA | SA | SO |
| 13" | 330 | 537 | 1030 | 38 | 425 | 85 | 45 | 71.5˚ | 73.5˚ | 27.5" |
| 15" | 381 | 550 | 1043 | 38 | 425 | 85 | 40 | 71.5˚ | 73.5˚ | 28" |
| 16.5" | 419 | 565 | 1050 | 38 | 425 | 85 | 40 | 72˚ | 73.5˚ | 28.5" |
| 18 | 457 | 575 | 1052 | 38 | 425 | 85 | 40 | 72˚ | 73.5˚ | 29" |
| 19.5 | 495 | 585 | 1051 | 38 | 425 | 95 | 40 | 72˚ | 73˚ | 30.5" |
| 21.5 | 546 | 595 | 1061 | 38 | 425 | 140 | 40 | 72˚ | 73˚ | 32" |
Mongoose frames are measured "Center-To-Center" (For example: the seat tube measurement is taken from the center of the bottom bracket spindle to the center of the top tube where it intersects the seat tube). The Amplifier and C(a)2 frames are measured "center-to-true-horizontal" (where the top tube would intersect the seat tube if the top tube were parallel to the ground). All dimensions are in millimetres unless otherwise stated.
